Sonex* Flaps


*This web site is NOT owned or managed by Sonex, Ltd.. Sonex, Ltd. is not responsible for the content unless explicitly stated. See Disclaimer.


After the wing ribs, this is where I got into riveted construction. The flaps are big and simple, so I did those first, then ailerons, then elevators, then rudder.

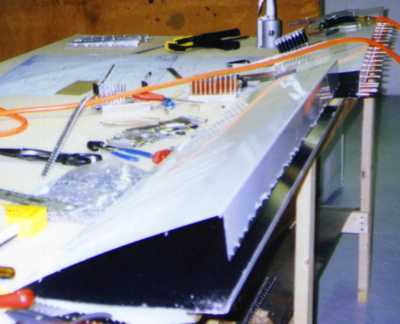

Drilling flap skin. 8/14/99 (posted 11/21/99)

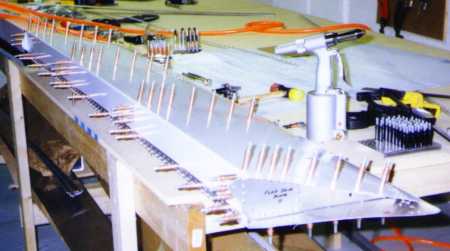

Drilling flap for hinge. 8/14/99 (posted 11/21/99)

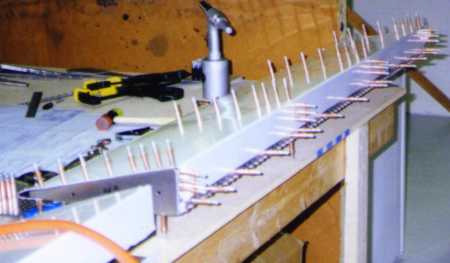

Flap with all ribs drilled. 8/14/99 (posted 11/21/99)

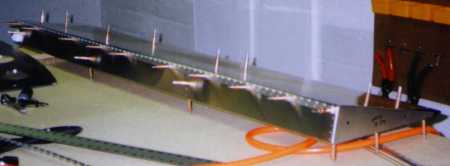

Flap drilled. 8/14/99 (posted 11/21/99)

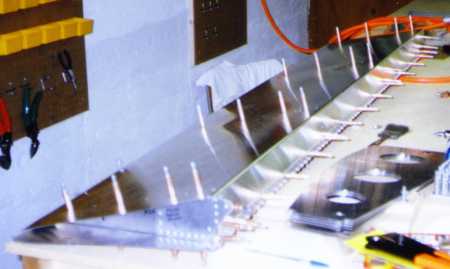

Flap deburred for riveting. 8/14/99 (posted 11/21/99)

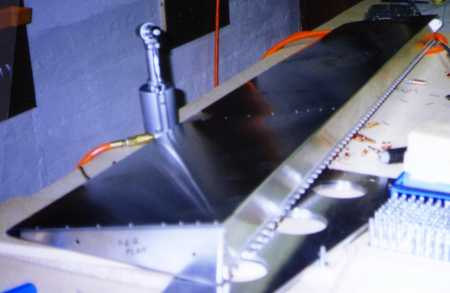

Flap riveted. 8/14/99 (posted 11/21/99)

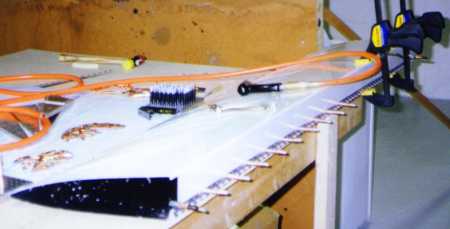

2nd flap drilling for hinge. 8/14/99 (posted 11/21/99)

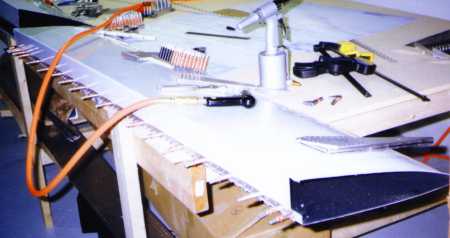

Right flap deburred for riveting. 8/14/99 (posted 11/21/99)
