Sonex* Landing Gear

---

*This web site is NOT owned or managed by Sonex, Ltd.. Sonex, Ltd. is not responsible for the content unless explicitly stated. See Disclaimer.

---

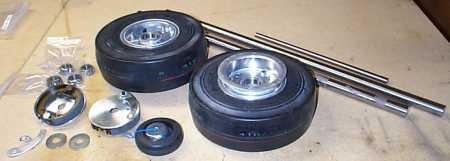

Collection of gear parts, so far. Asuza wheels & brakes from Great Plains, plus the AMS4928 (Titanium) rod from Sonex. 11/14/99

Tailwheel assembly. 1/20/00

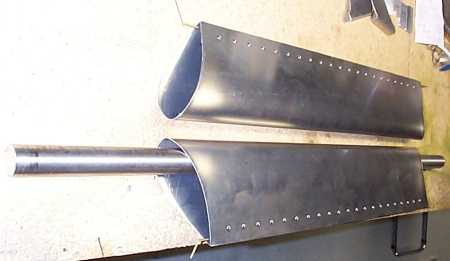

Gear leg fairings. 4/15/00

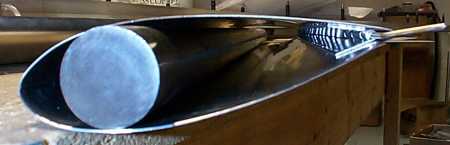

Fairing cross section came out as more extended than it looked on the print. The fairing itself was made to the dimension given, and it looks ok. Bent by hand, no tools. Careful to bend it evenly - at this tight radius it is easy to form a dent. 4/15/00

---
